Category
|
Current-sense-transformers
|
|
Manufacturer
|
Pulse Electronics Power
|
|
Series
|

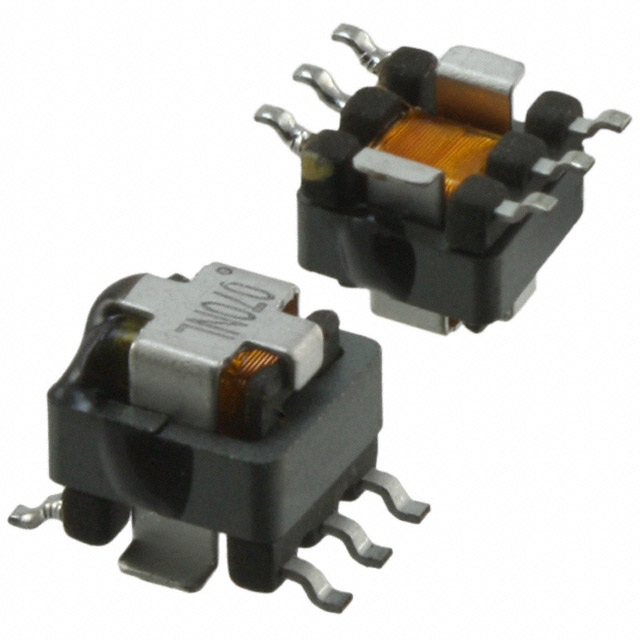

PA1005QNL
|
|
Package
|
Tape & Reel (TR)
|
|
RoHS
|
RoHs
|
|
Type
|
Invasive
|
|
Ratings
|
AEC-Q200
|
|
Inductance
|
980 µH
|
|
Part Status
|
Active
|
|
Current Ratio
|
–
|
|
Mounting Type
|
Surface Mount
|
|
ET (Volt-Time)
|
–
|
|
Frequency Range
|
20kHz ~ 1MHz
|
|
Size / Dimension
|
0.284″ L x 0.330″ W (7.21mm x 8.38mm)
|
|
Termination Style
|
Gull Wing
|
|
DC Resistance (DCR)
|
0.75mOhm Primary, 4.75Ohm Secondary Max
|
|
Current Rating (Amps)
|
20 A
|
|
Height – Seated (Max)
|
0.217″ (5.50mm)
|
|
Turns Ratio – Primary:Secondary
|
1:70
|
