| Manufacturer |
E-Switch |
| Series |
TL1100 |
| Type |

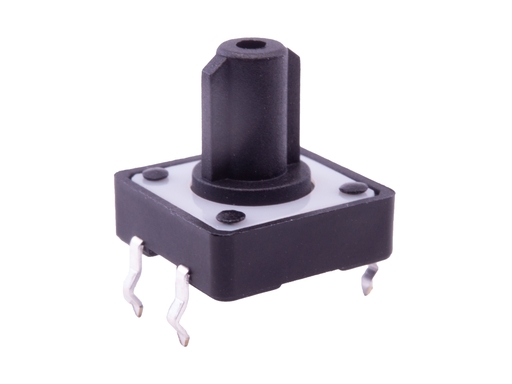

Tactile Switch (12mm x 12mm) |
| Contact Form |
SPST (1 Form A) |
| Contact Rating |
50mA @ 12VDC |
| Contact Resistance |
≤ 100 mΩ Max. |
| Insulation Resistance |
≥ 100 MΩ Min. |
| Dielectric Strength |
250 VAC |
| Mechanical Life |
100,000 Cycles |
| Operating Temp. |
-20°C ~ +70°C |
| Actuation Force |
260 ± 50 gf |
| Travel |
0.3mm Typ. |
| Termination |
Right Angle, Through Hole |
| Actuator Head |
Square Snap-On (6.45mm) |
| Housing/Contacts |
Polyester / Silver Plated Phosphor Bronze |
| Compliance |
RoHS |
| Applications |
Consumer Electronics, Audio/Visual, Medical Testing, Servers |
